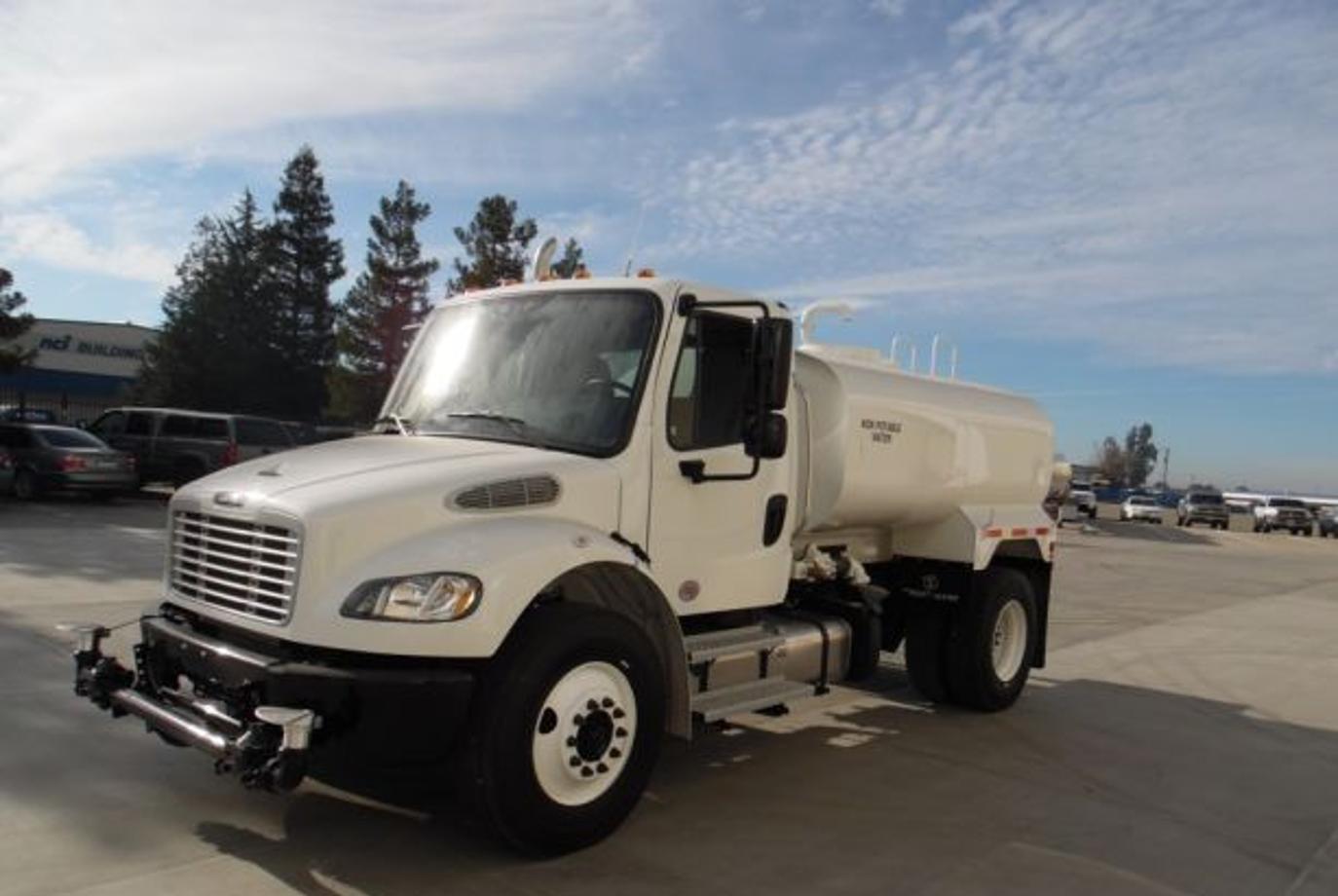

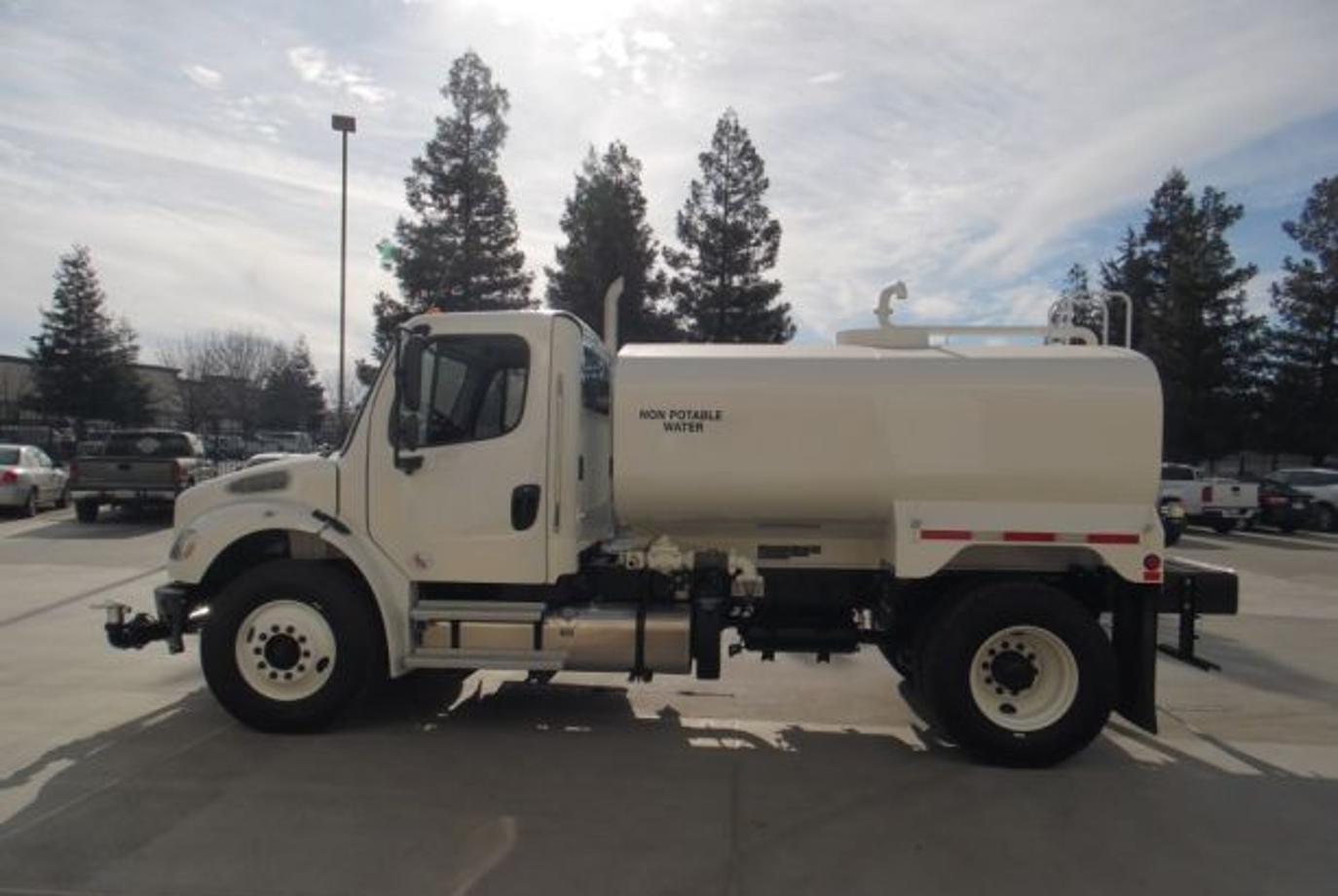

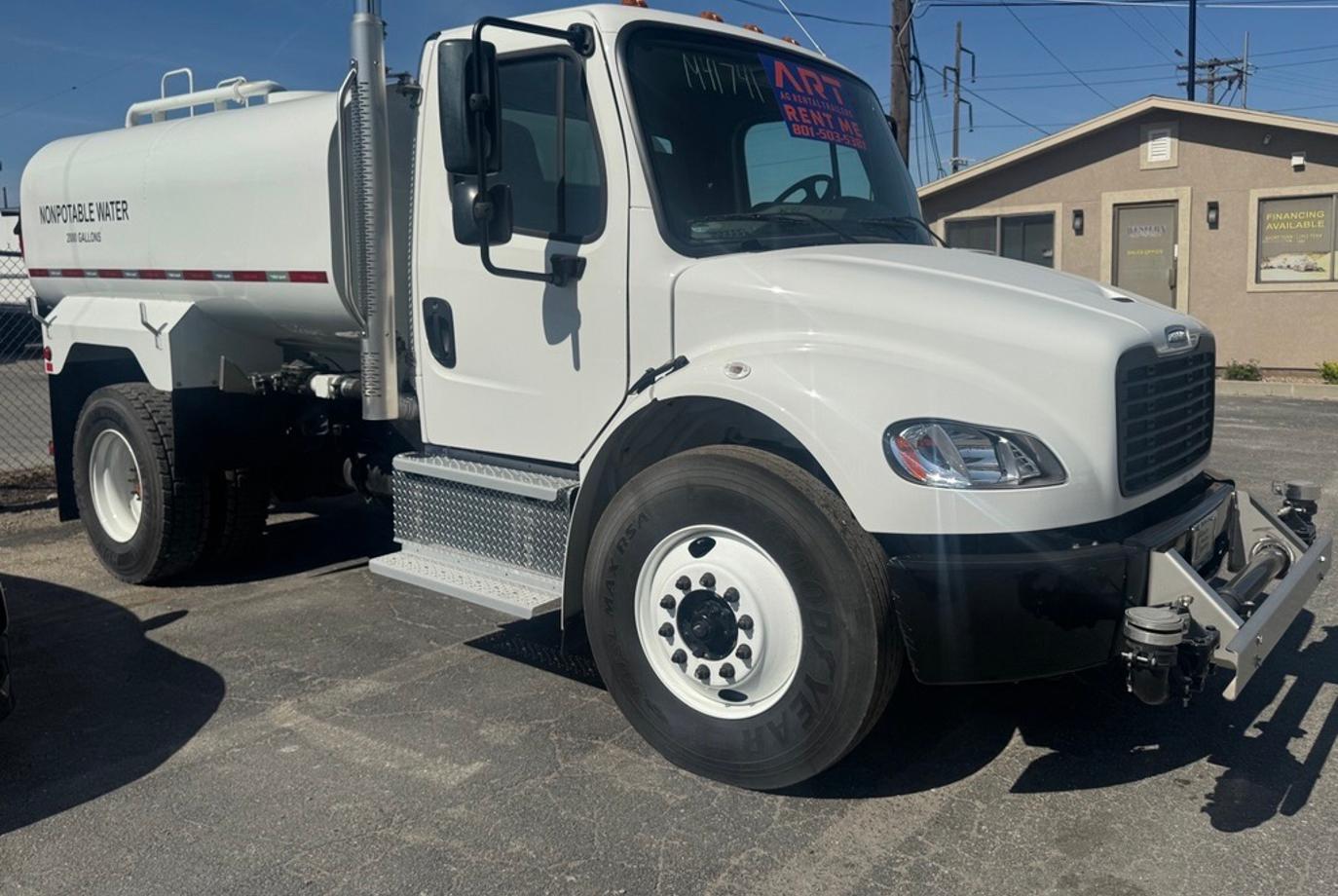

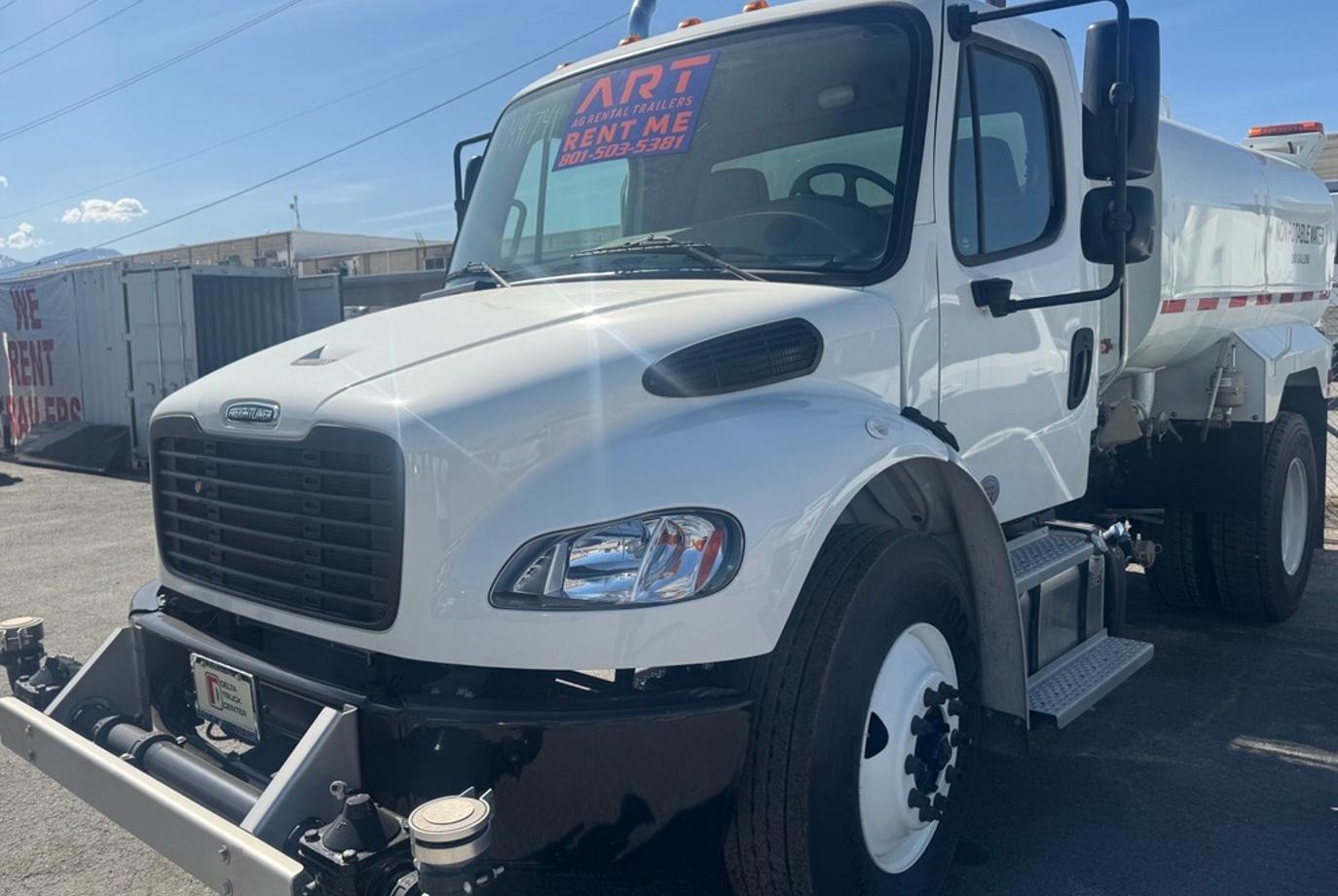

2K Freightliner Water Truck

2K Freightliner Water Truck

The 2K Freightliner Water Truck is a new dust control tank truck designed for highway and off-road construction sites. With a 2,000-gallon non-potable water tank and a reliable Freightliner chassis, this unit is built for efficiency and durability.

General Specifications

• Product: Non-Potable Water
• Product Weight: 8.35 lbs./gallon
• Vessel Code: Non-Spec
• Tank Operating Pressure: Atmospheric
• Tank Operating Temperature: Max 125°F
• Intended Area of Operation: 50 States
• Intended Use: Highway and Off-Road Construction Sites

Chassis

• Model: New Freightliner M2 106 Conventional Cab, 2-Door
• Brakes: Air Type
• Drive: 4x2
• GVWR: 26,000 lbs
• Front Axle: 10,000 lbs Capacity
• Rear Axle: 23,000 lbs Capacity, Spring Suspension
• Engine: Cummins ISB 250 HP, 660 lb/ft Torque, CARB Compliant
• Transmission: Allison 2500 RDS Automatic
• Cab Color: White

Cab Features

• Maintenance-Free Batteries
• Remote Mounted Positive & Negative Posts for Jumpstart
• Vertical Tailpipe: Mounted on RH Side
• Coolant Rated: -34°F
• Engine Block Heater: Yes
• Quick Disconnect Fitting: With Tire Inflation Kit
• Front Tow Hooks: Application-Based
• LH & RH Grab Handles
• Air Horn & Electric Horn
• Daytime Running Lights
• Heater, Defroster, & Air Conditioner
• 12V Power Supply: One (1) in Dash
• Speedometer/Odometer: Displays Miles & Kilometers, With Trip & Hour Meter
• Adjustable Tilt & Telescoping Steering Column
• Back-Up Alarm
• AM/FM/WB Radio: With Bluetooth & Auxiliary Inputs
• Fuel Capacity: 50 Gallons
• Cab Suspension: Air Ride
• Air Driver Seat & Fixed Passenger Seat
• Heated Mirrors: Flat & Convex
• Heated Fuel/Water Separator
• Traction Tires: Rear Axle
• Steel Wheels
• Extended Roadside Service Warranty: 1 Year, Unlimited Miles/KM, $1200 Cap

Body

• Tank Capacity: 2,000 Gallons
• Tank Material: Painted Steel, 3/16" A36
• Tank Heads: 3/16" A36
• Baffles: 3/16" A36
• Subframe: U-Shaped
• Belly Plate: 1/4" Full Length
• Rubber Pads: Between Tank & Frame
• Tank Mounts: Four (4) Solid
• Manway: 24" Circular
• Vortex Breaker: Plate with Screen
• Hydrant Fill: 2.5" with Swivel Swing Spout
• Sight Gauges: Two (2) Front & Rear, Mounted with Shut-Offs
• Rear Ladder: With Handrails
• Fenders: Two (2) Bonnet Style, Single Axle
• Walkway: Non-Skid, Top of Tank
• Light Kit: DOT LED
• Conspicuity Tape: DOT Compliant
• Mud Flaps: Rear Mounted
• Tank Paint: White to Match Cab

Pump & Controls

• Pump: 750 GPM Rated
• PTO: Hot Shift
• PTO Controls: Cab Mounted
• Driveline: 1000 Series PTO Shaft
• Pump Plumbing: Welded with Groove Couplers
• Distribution Manifold: Yes

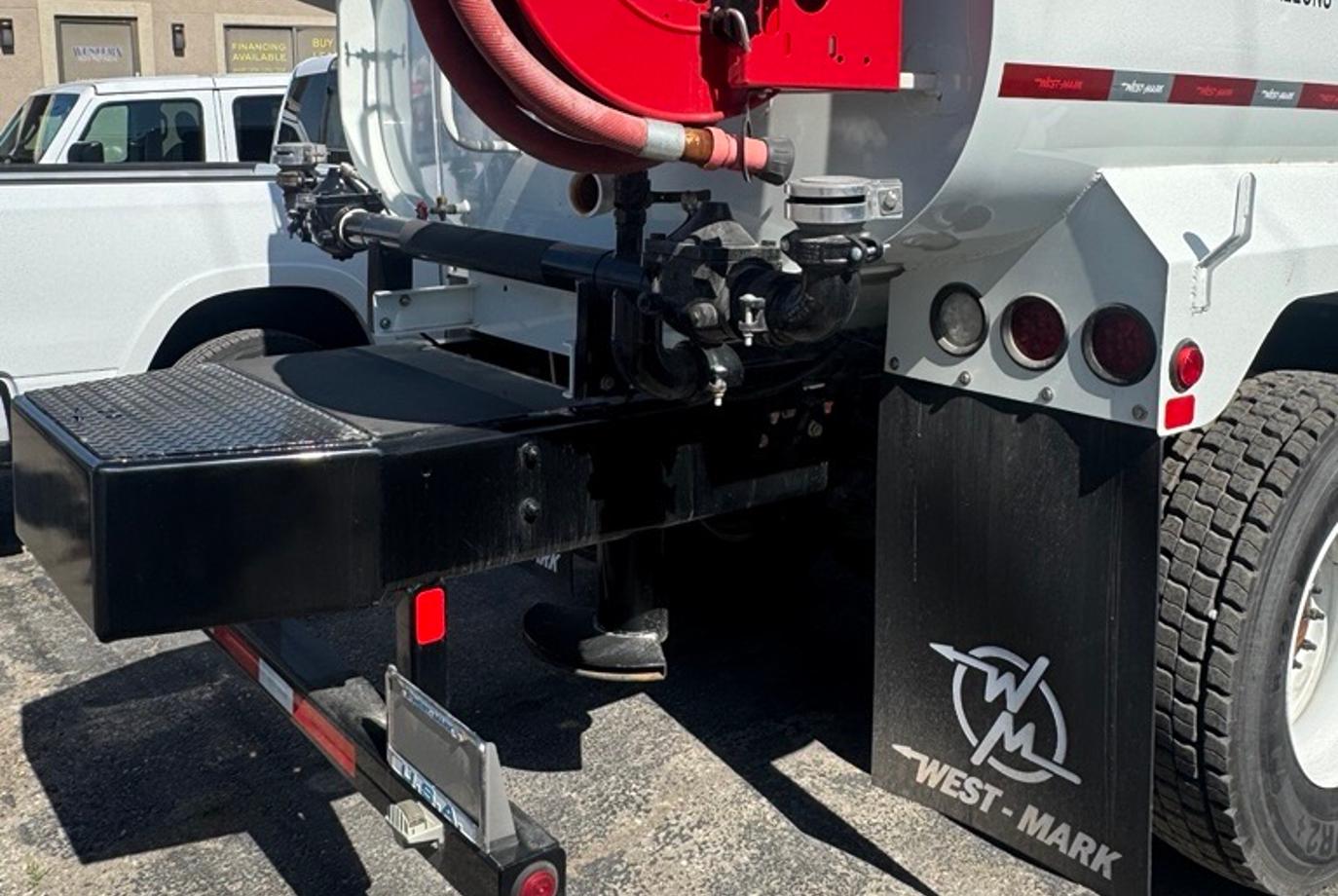

Sprayers & Discharge

• Front Sprayers: Two (2) with Adjustable Fan Heads
• Rear Sprayers: Two (2) with Adjustable Fan Heads
• Side Spray: Left-Hand Side, Duck Bill with Manual Up/Down Operation
• Discharge: 1.5" Ball Valve Driver’s Side

Additional Features

• Control Switches: Cab Mounted
• Push Block: Storage Area with Lid
• Rear Bumper: DOT Compliant
• Frame & Plumbing Paint: Black
• Low Point Drains: Installed in All Plumbing

Available Options

• Manhole Lid: Available Upon Request
• Rear Dump: Available Upon Request
• Monitor/Water Cannon: Available Upon Request
• RH Side Spray: Available Upon Request
• Hose Reel: Provisional Bracket Included, Hose Reel Available Upon Request
• Suction Loading System: Available Upon Request
• Back-Up Camera: Available Upon Request
• Beacon(s): Available Upon Request
• Tow Hitch: Available Upon Request
• Tool Cabinet: Available Upon Request

Warranty

The 2K Freightliner Water Truck is covered by a 1-year warranty, ensuring it is free from defects in material and workmanship.
