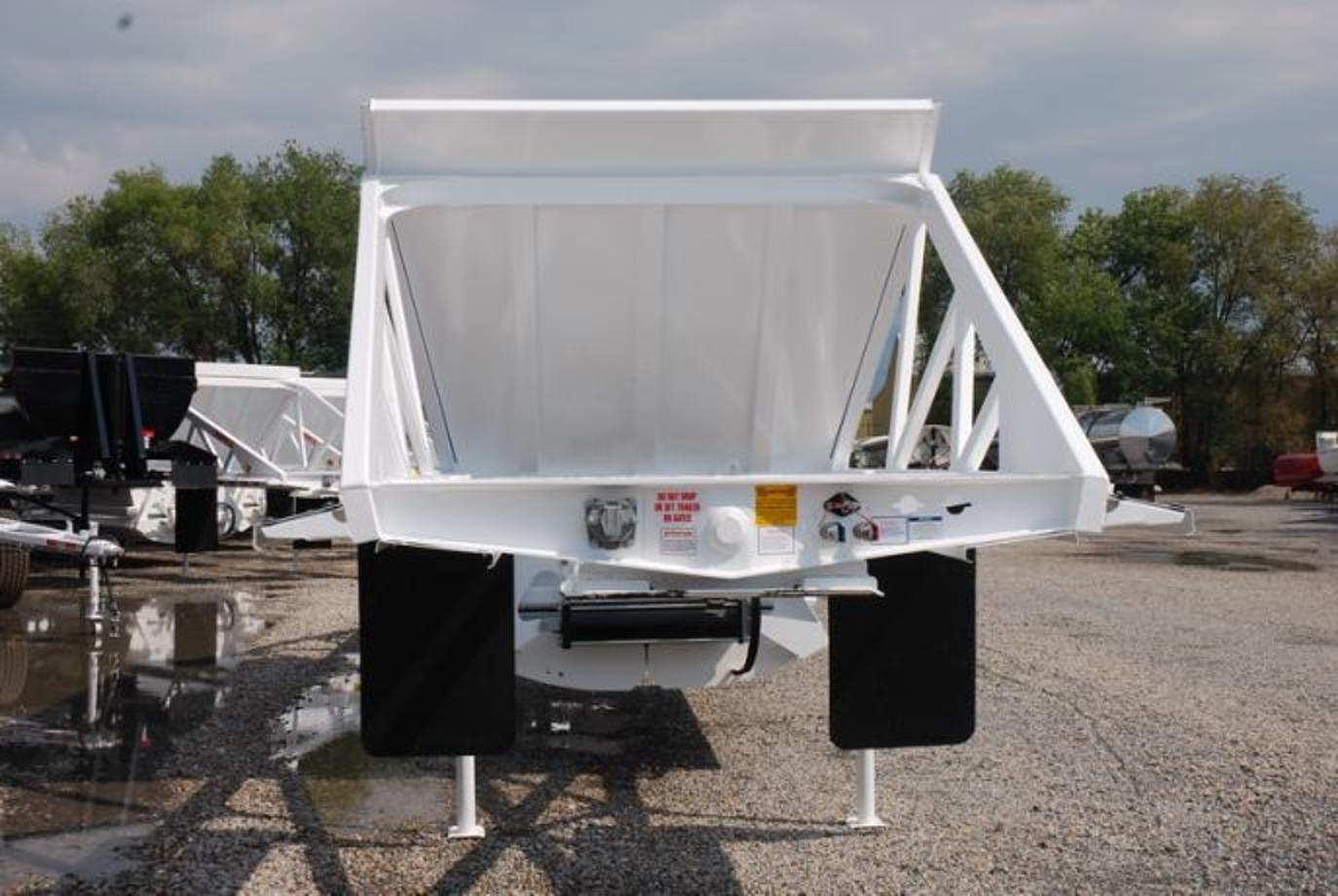

The CPS 3-Axle Bottom Dump Trailer (Model 4B340A200) is designed for maximum efficiency and durability, featuring a high-capacity hopper and a rugged frame for heavy-duty hauling.

General Specifications

• Capacity: 23 cubic yards
• Overall Length: 40’
• Overall Width: 96”
• Hopper Height: 10’ with Bangboards
• Estimated Weight: 13,723 lbs

Frame, Gates & Hopper

• Fifth Wheel: Oscillating with Standard King Pin
• King Pin Location: 18” (Standard)
• Pintle Hook: Installed Under Push Block
• Landing Gear: Drop Legs/Stiff Leg 4" X 4" Square (Galvanized)
• Hopper Material: Upper - 10 & 12GA Steel (Lightweight), Lower - 10GA Steel (Lightweight)
• Gate Material: AR400 Steel with Side Locks
• Bangboards: 12” Wood
• Wings: 18” AR450 Steel
• Fenders: Steel Front & Rear
• Push Block: Removable
• Rails: Bottom - 4" X 6" X 3/16" HSLA Tube, Top - 4" X 6" X 3/16" HSLA Tube
• Tarp Brackets: Installed for Cramaro Flip Tarp (Available Upon Request)

Electrical System

• Lighting: DOT Approved LED
• Front Connector: 7-Way (SAE J560)
• Additional Front Connector: 6-Way Wired for Gate Control
• Mid-Flashers: Amber
• Rear Connectors: 7-Way & 6-Way for Pintle Hook Operation

Undercarriage

• Axles: 3-Axle Lead, Hub-Piloted 25K Axles
• ABS: 1 ABS, 1 Non-ABS
• Suspension: Spring Suspension
• Track: 71.5" (96" Width)
• Windrow Deflector: Standard Dirt Deflector (Galvanized)
• Brakes: 16 1/2" X 7" Cam Brakes
• Bearings: HM 218248 & HM 212049
• Slack Adjusters: Meritor, Automatic, 28 Splines
• Seals: Stemco "Guardian" Type with "Gearlube" SAE 80W90
• Brake Chambers: T.S.E. "Omnibrake" (30-30)
• Tires: 385/65R22.5-14.9 W X 41.9 DI
• Wheels: Aluminum (Outside)

Air System

• Air Cylinders: Twin 8" Bore with 60 Gallon Air Reservoir, Filter, Oiler & Quick Release Valve
• Gate Control: Air Controlled - Electric from Truck Cab & Manual from Ground (Versa Valve Hand Control)
• Air Valves (ABS): Rear Gladhands for Pintle Hook (Service & Emergency with Shut-Offs)
• Relay Valve: Installed on Tank & Quick Release on Emergency Line

Paint & Safety

• Preparation: Shot Blasted, Acid-Based Wash with Rust Inhibitive Rinse
• Finish: One Coat Epoxy Primer & One Coat Polyurethane Topcoat
• Color: White
• Reflective Tape: Conspicuity Striping (FMVSS/CMVSS 108 Compliant)
• Markings: Gray & Red Each Side, Fully Covers Rear Sill & Push Block

Why Choose the CPS 3-Axle Bottom Dump Trailer?

With its lightweight yet durable steel construction, advanced air and braking systems, and efficient dump operation, the CPS 3-Axle Bottom Dump Trailer is ideal for high-volume hauling and unloading operations.
