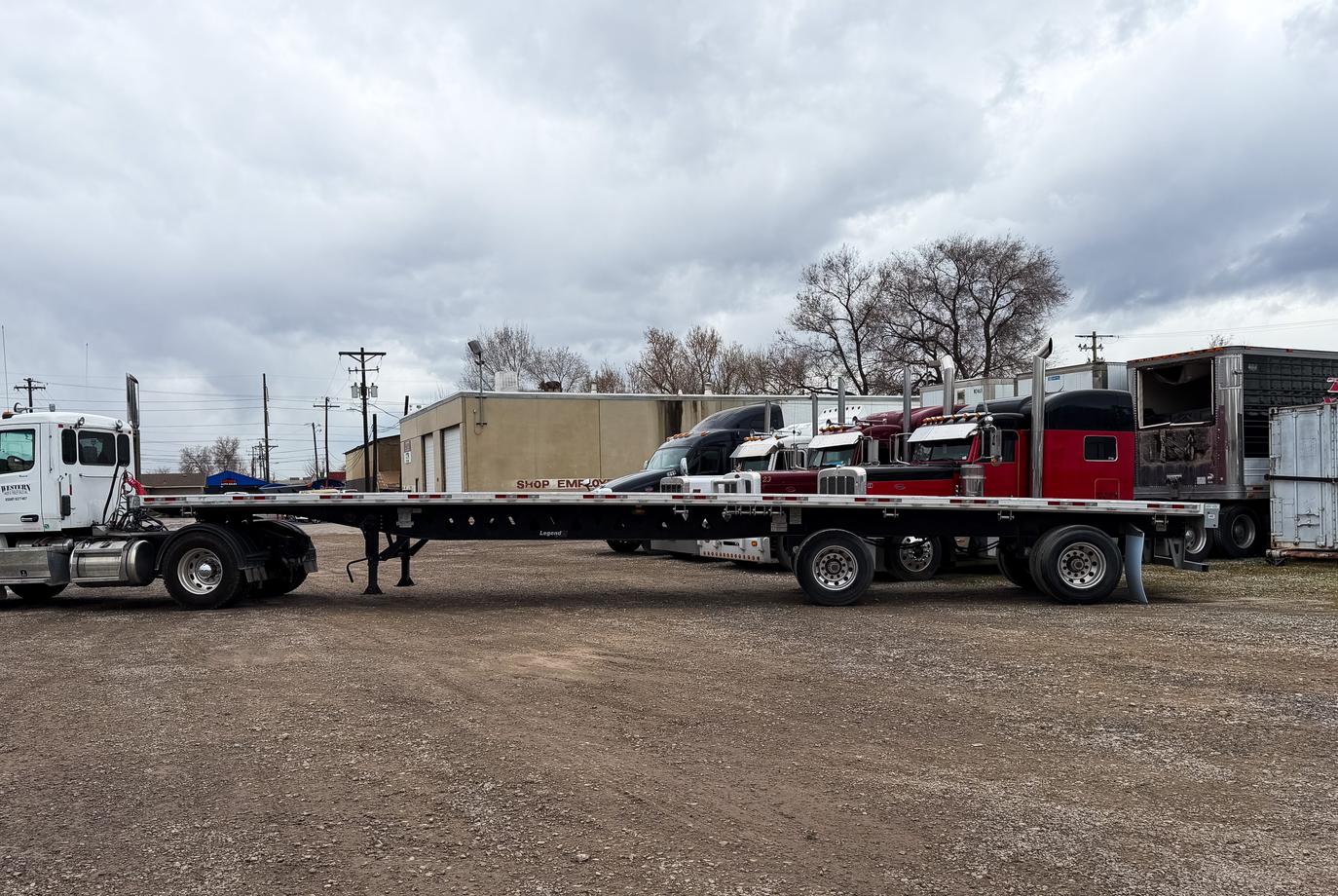

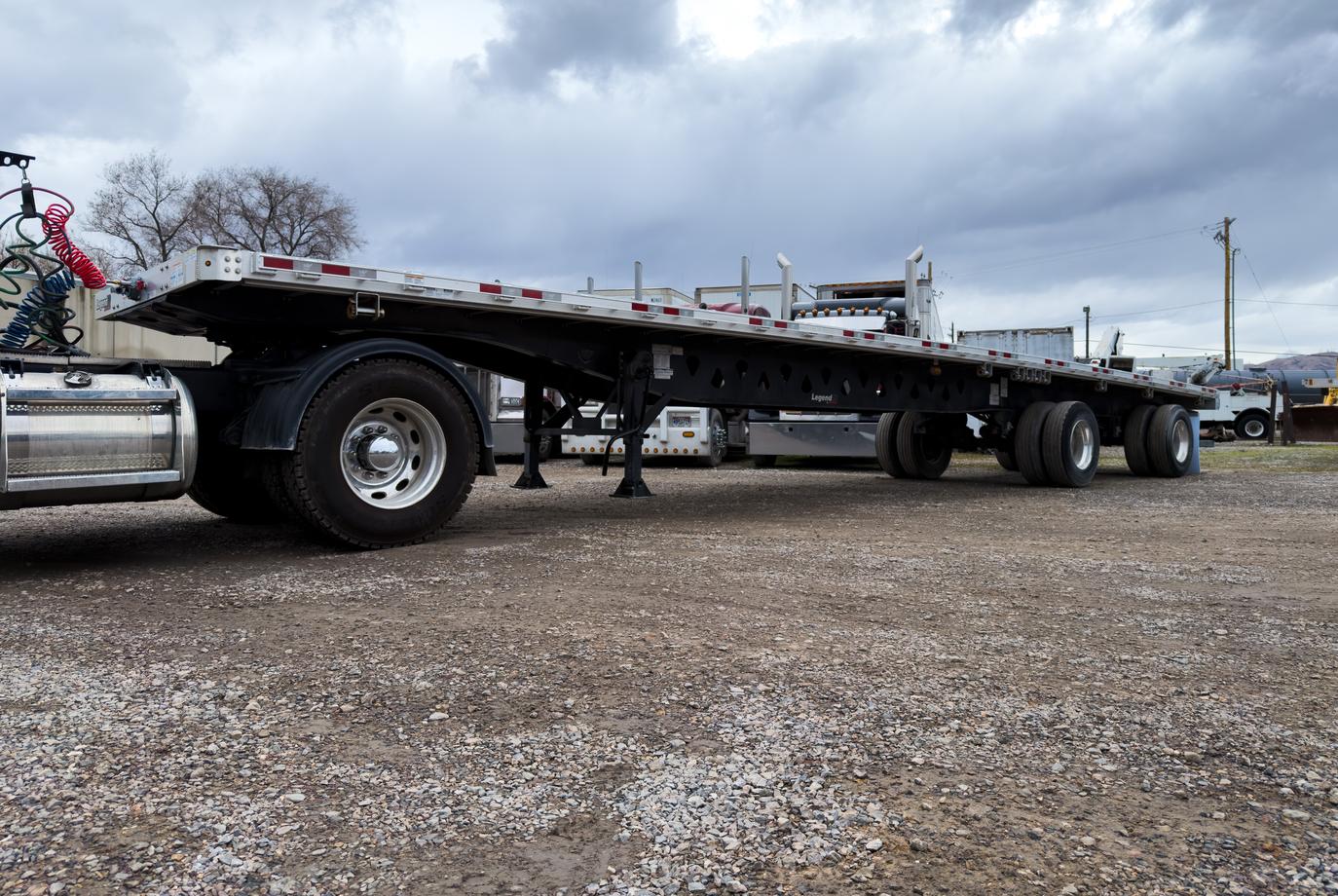

2024 Manac 10248C000L Flatbed Trailer

MANAC 10248C000L
SEMI-TRAILER, COMBO PLATFORM LEGEND SD

DIMENSIONS

• LENGTH: 48'-0"
• WIDTH: 102", 97" BETWEEN SIDE RAILS
• HEIGHT: FLOOR, APPROXIMATELY 59 1/2" HIGH AT FRONT AND 54" AT REAR

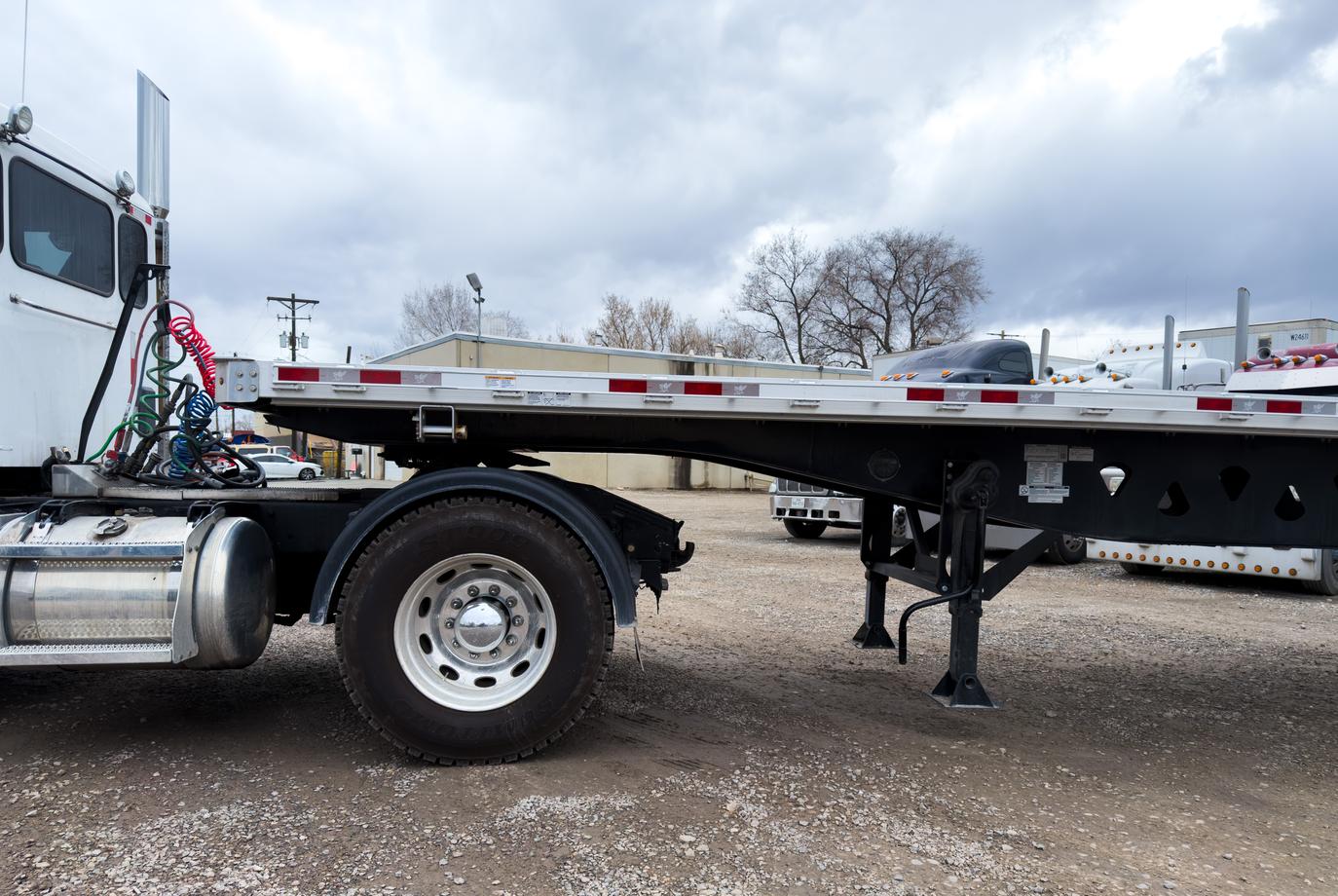

COUPLING

• ‍‍COUPLER PLATE: 1/4", 80000 PSI STEEL, PLUG WELDED STRUCTURE
• KING PIN LOCATION: 30" FROM FRONT
• COUPLER HEIGHT: 48"

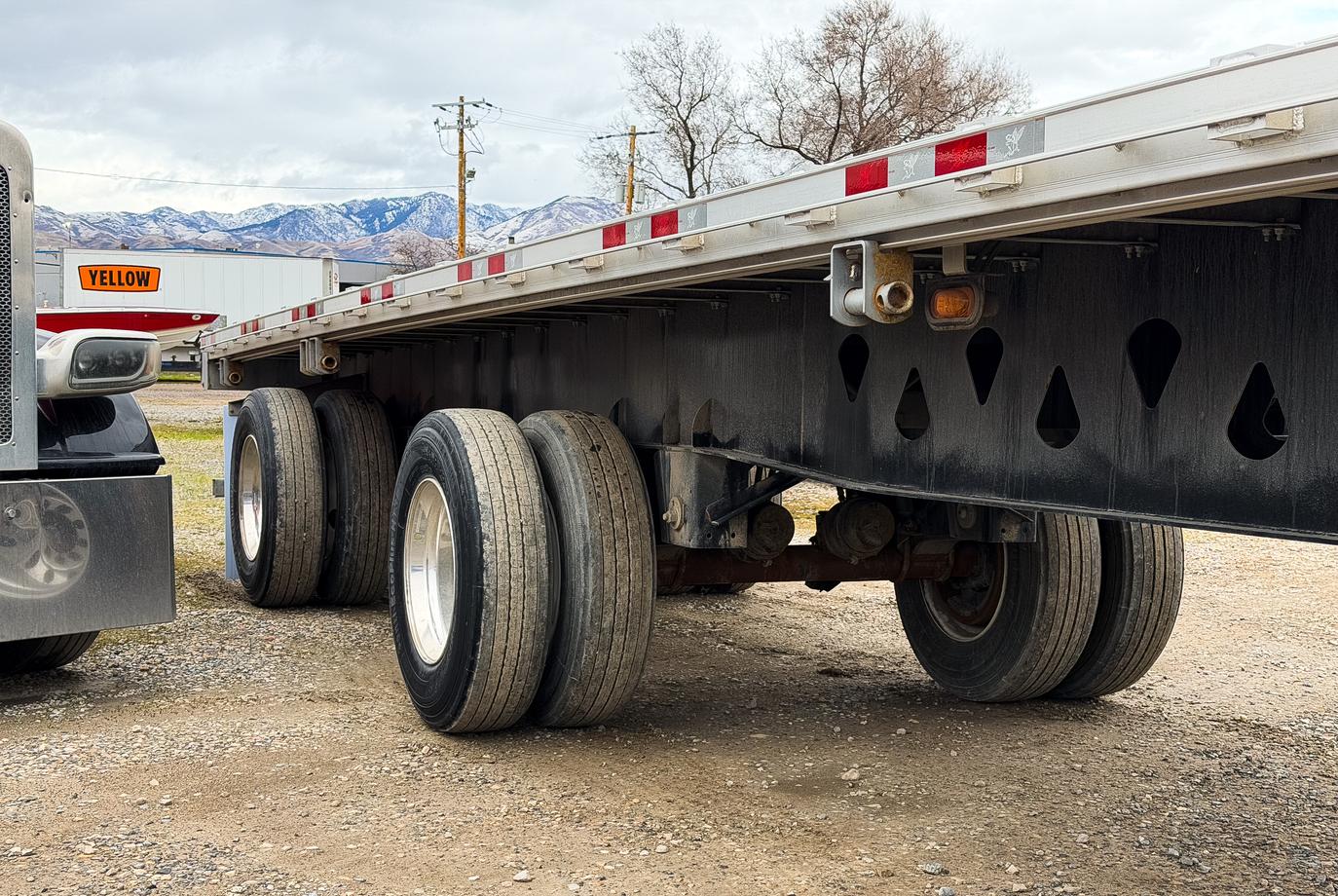

STRUCTURE

• ‍‍STRUCTURE: 44" C/C FRAME WITH "CAMBER"
• FLANGES: 3/8" x 5", HIGH TENSILE
• WEB: 1/4" PLATE IN KING PIN AREA AND THE REMAINING IN 3/16", 80000 PSI STEEL. 27" HIGH AT THE PEAK WITH HOLES, PARACHUTE SHAPED, TO LIGHTEN TRAILER
• GOOSENECK: 11 1/4" HIGH, WITH INTEGRATED NOSE RAMP AND 48" STRAIGHT BEHIND KING PIN
• CROSSMEMBERS: I BEAMS, 4" @ 3.2 LBS/FT, 80000 PSI STEEL, GALVANIZED, 16" C/C
• FLOOR: STRUCTURAL ALUMINUM EXTRUSIONS, FLAT TYPE, INVERTED "T", 1 1/8" HIGH WITH 4 APITONG OR EQUIVALENT PLANKS
• FLOOR FASTENING: SCREWS
• SIDE RAILS: 4 3/8" x  5 11/16" HIGH, EXTRUDED ALUMINUM ("LEGEND" MODEL)
• SIDE BOXES: 3 5/8" x  1 5/8" INSIDE, 4" HIGH, EXTRUDED ALUMINUM. CMVSS-905 WLL, 5500 LBS WLL APPROVED
• RUB RAILS: ALUMINUM EXTRUSIONS 3/8" x 2 3/4", SINGLE RUB RAIL SPACERS 1" x 1 3/4" AS ANCHOR
• CORNERS: BEVELLED
• X BRACES: BETWEEN MAIN BEAMS, FULL LENGTH

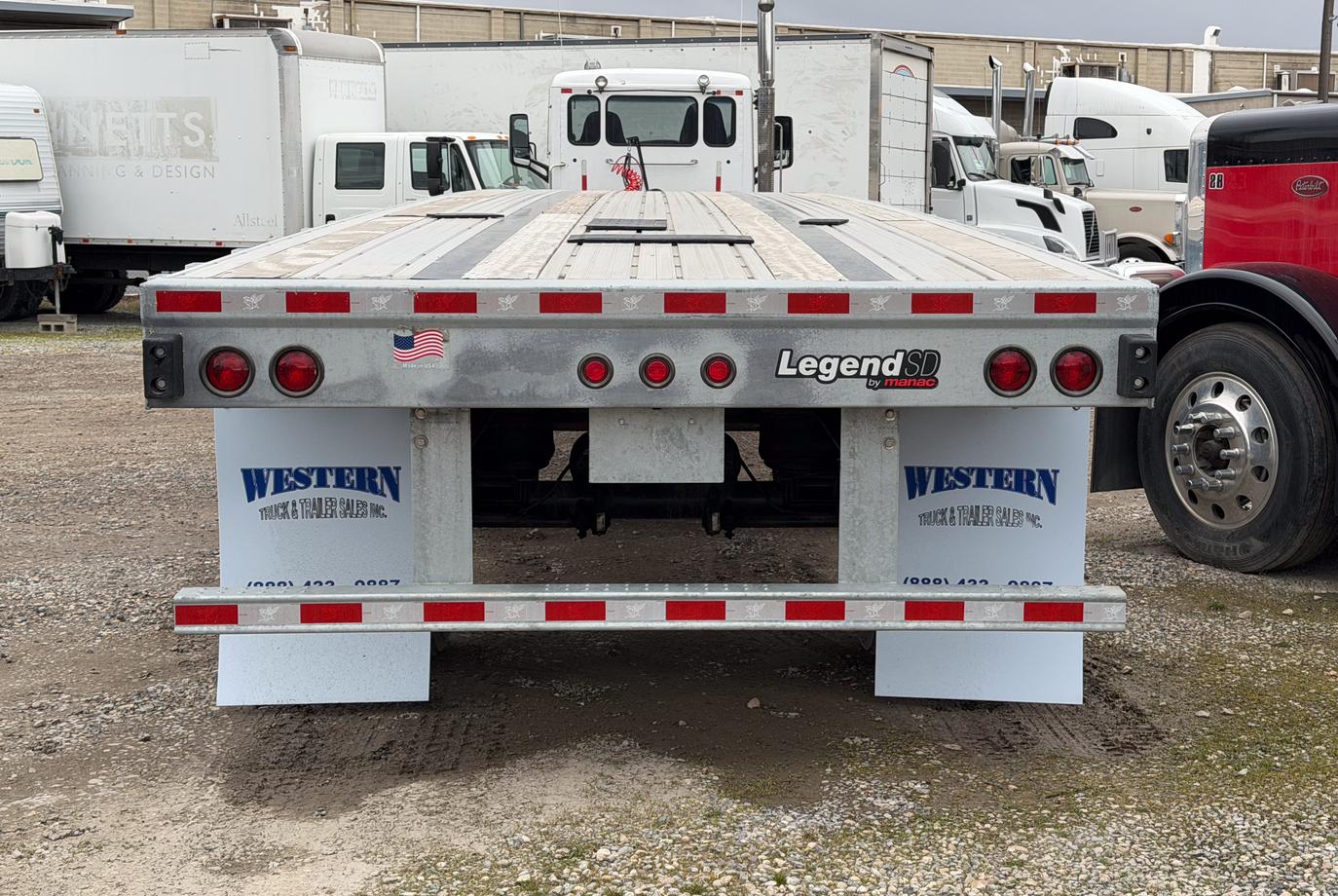

ENDS

• ‍‍FRONT RAIL: BOLTED ALUMINUM EXTRUSION, 7" HIGH, OVERLAPPED FLOOR TO ALLOW PLANK TO WALK UNDERNEATH
• BUMPER: CMVSS 223-RIG APPROVED (IN ACCORDANCE WITH CANADA & USA REGULATION). GALVANIZED (G164) STEEL, BOLTED UPRIGHTS TO FRAMES, 4" x 4" CROSS BAR FORMED TUBING AT A MAXIMUM HEIGHT OF 22" FROM UNDER TUBING TO GROUND
• BUMPER: 2 RUBBER DOCK, AT THE END OF REAR RAIL
• REAR RAIL: FORMED STEEL, GALVANIZED

ELECTRICAL

• ‍‍FRONT CONNECTOR: 7 WAY (SAE J560)
• ELECTRICAL SYSTEM: SHOCK PROOF LIGHTS, POLYCARBONATE LENSES, IN COMPLIANCE W/ CMVSS 108
• MAIN SYSTEM: GROTE ULTRA BLUE LED, SEALED BEAMS, TAIL LIGHTS, MARKERS LIGHTS "DOT", IDENTIFICATION LIGHTS (2 1/2" DIA.), LICENSE LIGHT
• FLASHERS: SEALED BEAMS LED, ONE LAMP INCLUDING SIDE MARKER AND FLASHER, EACH SIDE AT MIDDLE POINT, AMBER

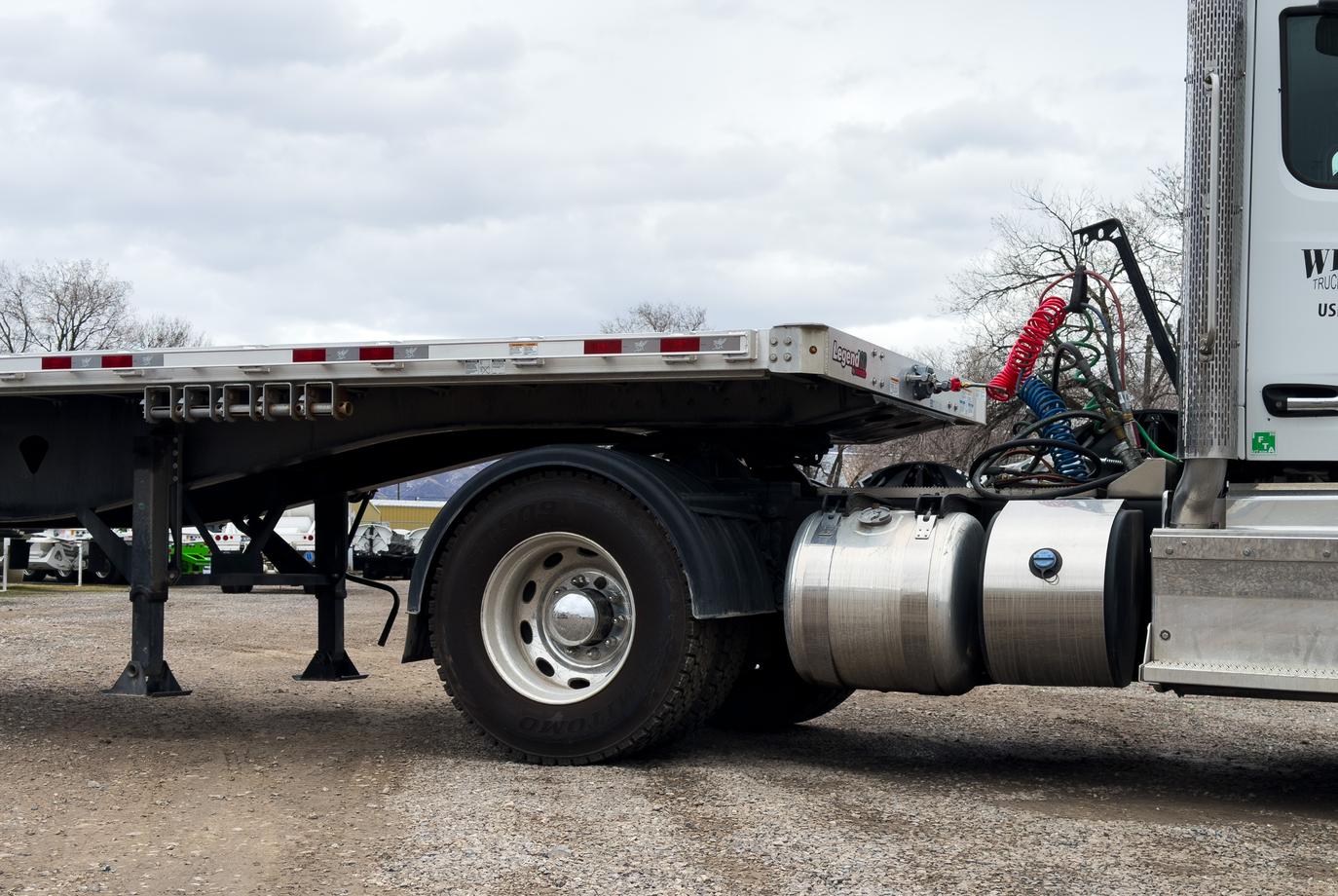

LANDING GEAR

• ‍‍LANDING GEAR: AXN, (LG50DUN)
• SAND SHOES: 10" x 10"
• CRANK: ROAD SIDE

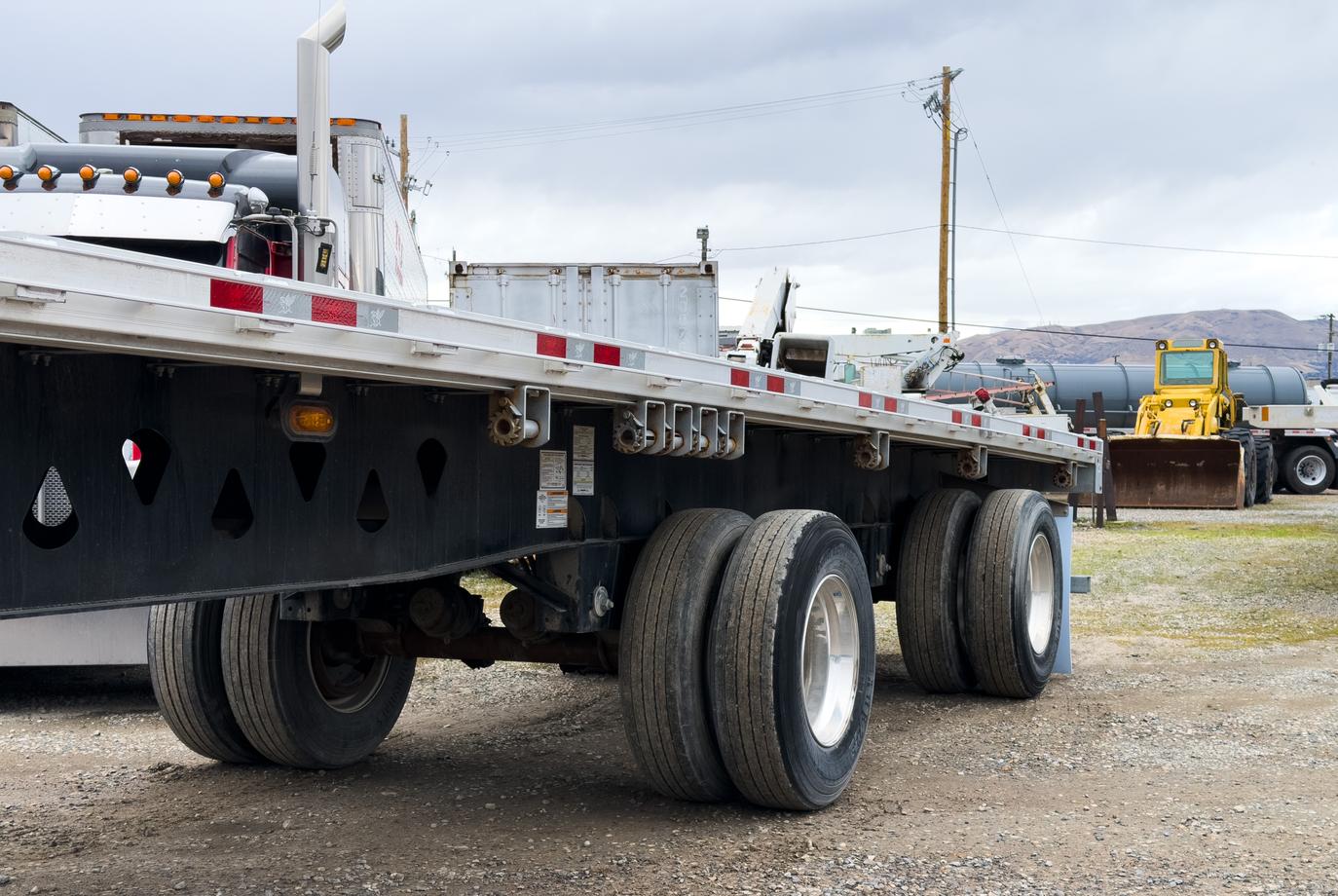

BOGIE

• ‍‍BASIC MECHANICAL
• BOGIE: FIXED, FOR TANDEM 122" SPREAD
• **CA LEGAL**
