Choice 355NG Lowboy Trailer w/Flip Axle

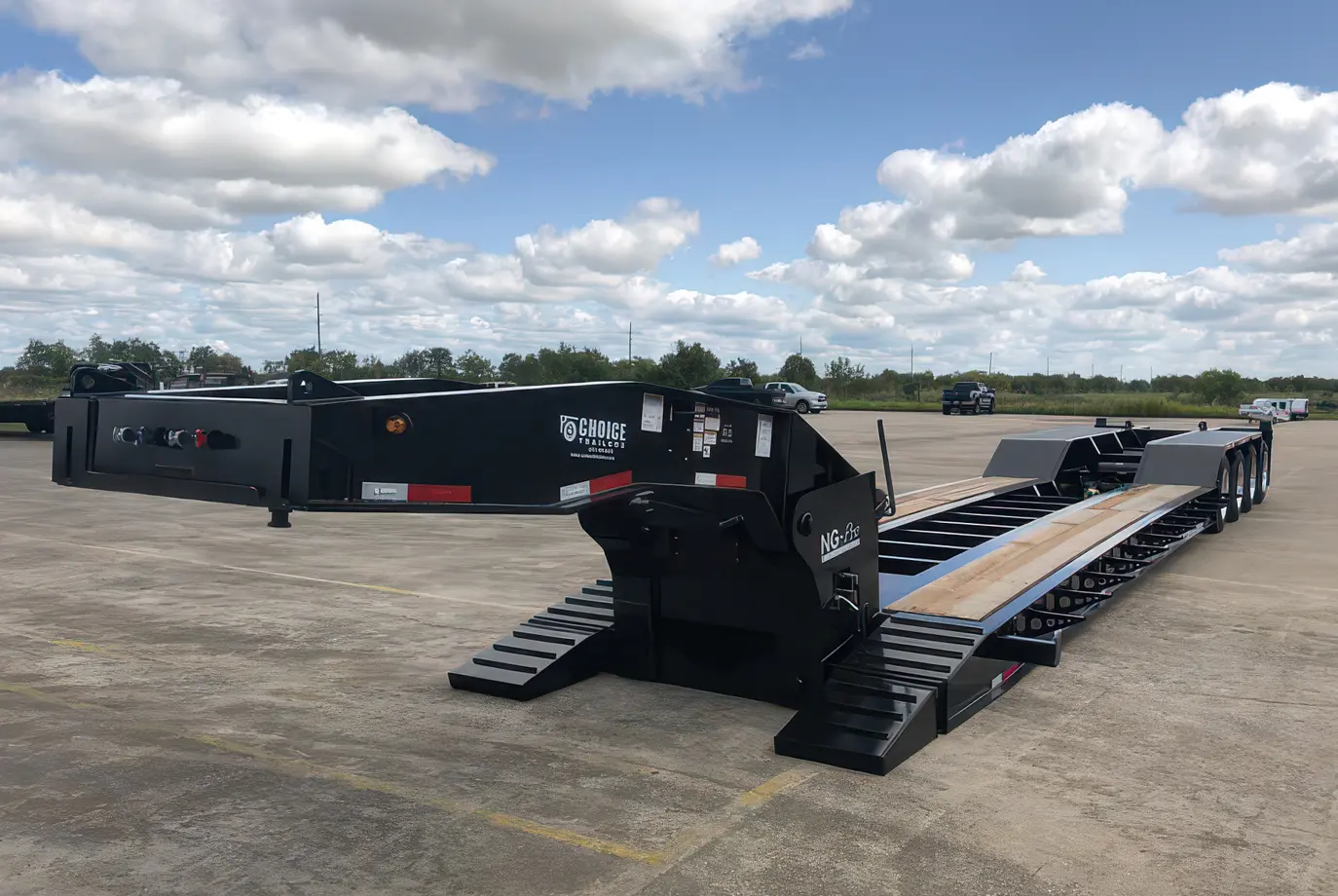

2025 Choice 355NG - 3 Axle 55-Ton Non-Ground Bearing Lowboy Trailer

The 2025 Choice 355NG is a heavy-duty, non-ground bearing lowboy trailer designed for maximum load capacity and durability. Equipped with a hydraulic flip axle, air-ride suspension, and reinforced frame construction, this trailer ensures reliable and efficient transport for heavy equipment.

Key Features

• Overall Length: 53'
• Overall Width: 102"
• Capacity: 110,000 lbs
• King Pin Setting: 34" & 16"
• Swing Clearance: 108" & 90"

Gooseneck Specifications

• Type: Low-profile scraper gooseneck, arched, hydraulic detachable, non-ground bearing
• Locking Mechanism: Air-actuated locking pin
• Hydraulic Lift Cylinders: (2) with control valve on driver side
• Hydraulic Power: Runs off wet kit (5-12 GPM hydraulic requirement)
• Adjustable Ride Heights: 5 positions
• Hydraulic Neck Support: Yes

Main Deck

• Length: 26'
• Loaded Deck Height: 22" with 6" ground clearance (adjustable)
• Construction: 4-beam, fully cambered fabricated beams, 100KSI high-tensile T1 steel
• Decking: Raised Apitong flooring, open center standard
• Tool Storage: Expanded metal tool tray at front of main deck
• Ramps: Folding front-loading ramps with traction cleats for tracked equipment
• Bucketwell: Recessed bucketwell cutout at rear of main deck
• Boomwell: Recessed boomwell cutout over axles and bumper
• Outriggers: Heavy-duty pull-out outriggers at the beginning of load bed, removable 12" swing-type outriggers spaced evenly across deck
• Lashing Rings: 1" forged bent D-rings, evenly spaced
• Flag Holder Slots: One pair at the front of load bed, one pair on rear bumper

Rear Deck

• Type: Bolster style, open wheels standard

Axles & Suspension

• Axles: (3) 25,000 lbs nominal axles, oil-lubricated hubs, 77.5" track width
• Axle Spacing: 55"
• Suspension: Air-ride, 25,000 lb capacity, automatic ride height control, manual override, raise and lower valve
• Lift Axle: Equipped on third axle

Wheels & Tires

• Wheels: Steel disc, hub-piloted type, white
• Outer Wheels: 8.25 x 22.5 10-Hole pilot mount aluminum polished
• Tires: 255/70R22.5 Load Range H, 16-ply steel-belted radial

Brake System

• Brakes: 16" x 7" drum brakes, 4S2M ABS, automatic slack adjusters, 30-30 chambers on all axles

Lighting & Electrical

• Lighting System: DOT-approved, sealed 12V system with LED lights
• Tail Lights: 3 per side
• Mid Turn Signals: Included
• Additional Lighting: 4" Amber strobe light

Paint & Finish

• Surface Prep: Sandblasted
• Primer: Epoxy primer
• Topcoat: Polyurethane, black

Optional Features

• Engine: 13 HP Honda unit at base of neck, dual hydraulics

2025 Choice Flip Axle Attachment

• Overall Width: 102"
• Suspension: Air-ride, 25,000 lb capacity, automatic ride height controls, manual override, raise and lower valve
• Axles: 25,000 lbs nominal axles, oil-lubricated hubs, 77.5" track width
• Axle Spacing: 55"
• Wheels: Steel disc, hub-piloted type, white
• Outer Wheels: 8.25 x 22.5 10-Hole pilot mount aluminum polished
• Tires: 255/70R22.5 Load Range H, 16-ply steel-belted radial
• Brakes: 16.5" x 7" drum brakes, automatic slack adjusters, outboard drums
• Lighting: DOT-approved, sealed 12V system, LED lights, 3 tail lights per side, mid turn signals
• Flag Holder Slots: One pair on rear bumper
• Decking: Open wheels standard
• Paint: Sandblasted, epoxy primer, polyurethane topcoat, black
• Hydraulics: Hydraulic actuated flip axle
• Additional Lighting: 4" Amber strobe light

Why Choose the 2025 Choice 355NG?

With its heavy-duty construction, non-ground bearing gooseneck, and advanced suspension system, the 2025 Choice 355NG is a reliable and efficient solution for transporting oversized and heavy loads.
