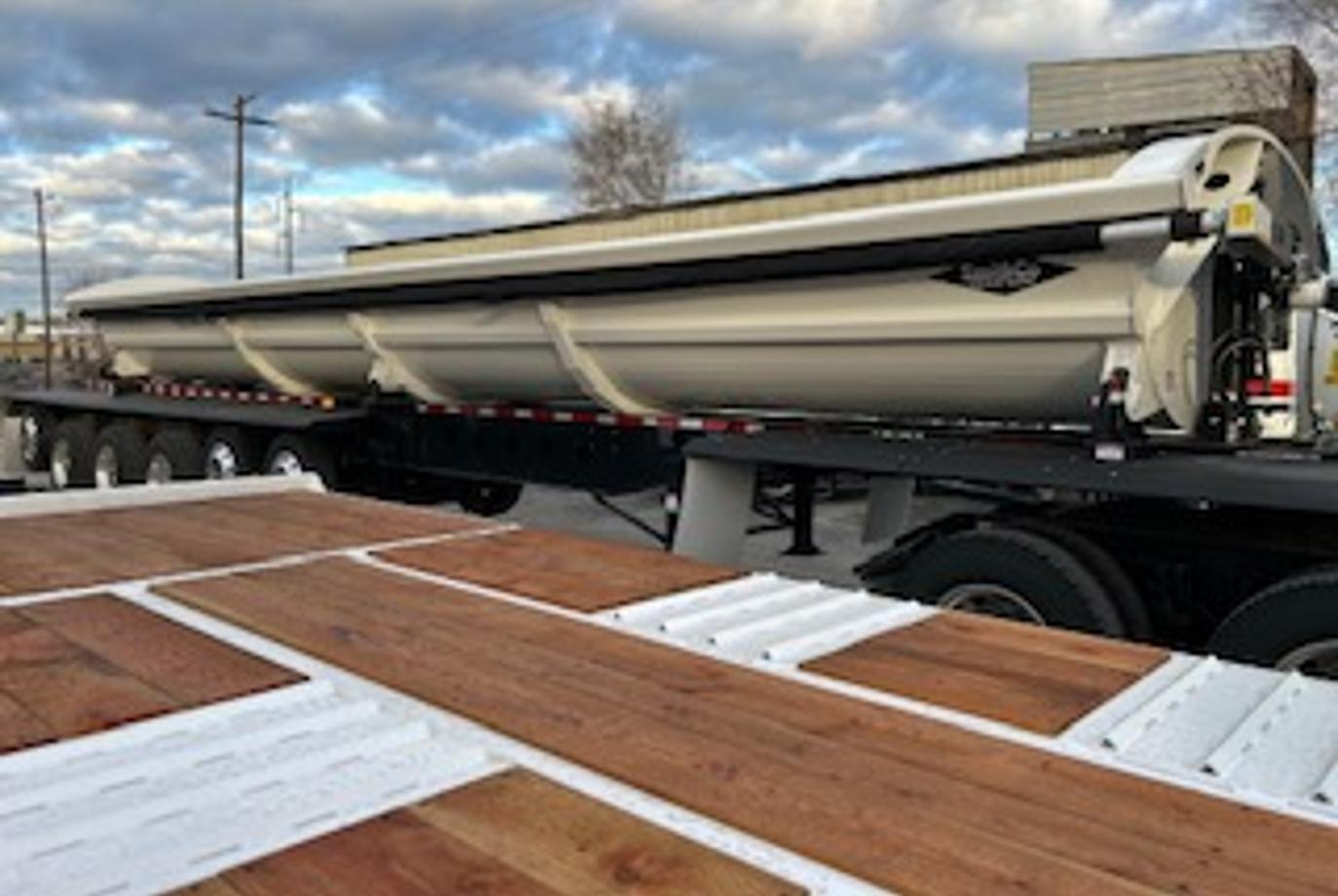

SmithCo 6 Axle Side Dump Trailer - SX6U SX6-53-40
The SmithCo SX6U SX6-53-40 is a high-performance round-bottom side dump trailer engineered for maximum durability and efficiency. Designed for demanding hauling applications, this trailer features advanced materials, an optimized axle configuration, and superior load capacity.
General Specifications
- Overall Width: 102 inches
- Frame Length: 53 feet
- Tub Length: 40 feet
- Tub Style: SX-Round Bottom
- Updated Steer Axles: 13.2K Steer Axles
Tub Construction
- Side & Floor Material: 3/16" AR450 Steel
- Volume (Water Level): 26.8 Cubic Yards
- Volume (Heaped): 35.6 Cubic Yards
Axles & Suspension
- Axle Spacing: 60"-60"-54"-54"-79"
- Lift Axles: 1st, 2nd & 6th (13.2K), all lifts controlled by separate switches
- Axles: (1) ABS 25K, (5) Non-ABS 25K
- Axle Track: 77.5" Standard
Wheels & Tires
- Hubs: Duralite Standard
- Brakes: 16-1/2" x 7" Drum Brakes, Cast Steel
- Wheel Style: Hub-Piloted U/M Zero Offset Wheels
- Wheel Type: (6) 12.25x22.5 Aluminum Super Singles on Triaxle, (6) 8.25" Aluminum on Steers
- Tires: (6) 385/65R22.5 "J" Ply Super Singles on Triaxle, (6) 295/75R22.5 on Steers
Additional Features
- Fenders: All Plastic
- Paint: Tub - DV-19088 (White), Frame - DV-19040-DTM (Black)
- Tarp System: Aero Mesh Non-Sealed
- Tarp Lockout: W Style Standard
- Push Block: Standard
- Air Gauge: Large Liquid-Filled on Driver's Side
- Grease Bank: Front & Rear Hydraulic Cylinders
Lighting & Safety
- Tail Lights: 3 Red
- ID Lights: 5 at Rear
- Pull Cords: For All Air Tanks
- Additional Hinges: 3rd Hinge & Center Column
Why Choose the SmithCo 6 Axle Side Dump?
With its reinforced AR450 steel construction, optimized axle configuration, and high-volume capacity, the SmithCo SX6U SX6-53-40 is the ideal choice for heavy-duty side dump applications, delivering superior reliability, efficiency, and performance.
